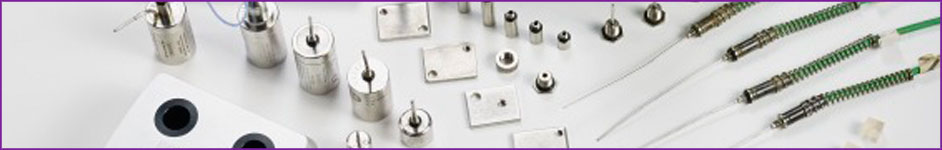

Temperature indicators

List of technologies

This project will include a review of technologies available for on-line measurement of food processes. The following are technologies currently identified. We welcome members' suggestions for further properties and measurement technologies for inclusion


1 Physical Properties of material being processed


Property

Available technology

Temperature

Thermocouples
Thermistors
Resistance thermometers/ Resistance temperature detectors (RTDs)
Infrared sensors/ Pyrometers

Mass

Batch weighers
Mixer weighers

Dimensions (length, width, depth, particular thicknesses)



Colour



Density



Distribution



Rheology, strength, stiffness, viscosity

Load cell

Foreign body detection

X-ray


2 Chemical properties of material being processed


Property

Available technology

pH

Calibrated pH meter and probe

Composition (fat, moisture content etc.)

NIR
UV microspectrophotometer

Evolved gasses

Semiconductor based sensors
Oxidation sensors
Catalytic sensors
IR

Brix





Water activity


3 Measurable parameters from processing equipment/plant


Property

Available technology

Torque



Power consumption

Electrical meter

Heat flux



Flow rate of fluids

Insertion turbine flow meter
Ultrasonic flowmeter

Movement of solid product/ packaged product



Pressure/vacuum

Pressure gauge

Speed



Relative humidity

Humidity sensor (Hygrometer)

Vibration

Vibration monitor

Temperature (of processing equipment/ plant)

Thermocouples
Thermistors
Resistance thermometers/ Resistance temperature detectors (RTDs)
Infrared sensors/ Pyrometers


4 Physical properties of packaged product


Property

Available technology

Presence and placement of food components (e.g. fill level)



Presence, placement and accuracy of information on bar codes and labels



Size

Shape

Colour

Mass

Temperature

Thermocouples
Thermistors
Resistance thermometers/ Resistance temperature detectors (RTDs)
Infrared sensors/ Pyrometers

Pressure/vacuum

Pressure gauge


Contact us

If you would like further information please email us at support@campdenbri.co.uk or call our switchboard on +44(0)1386 842000 and they will be happy to direct your call to the relevant person.
